Standard Tolerance
±20% (Tighter tolerances available)
Switch Type
SPDT (single pull / double throw) normally open or normally closed
Switching Medium
Air; compatible fluids
Mechanical Capability
Pressure switch
Mechanical Life
More than 10 million cycles
Proof Pressure
Varies by option
Operating Temp.
+40°F to +150°F (standard) | -46°F to +205°F (contact us)
Case Material
Polycarbonate (optional: Lexan 141, Supec®, Ultem®, Noryl®)
905-906 range use PPS wetted parts

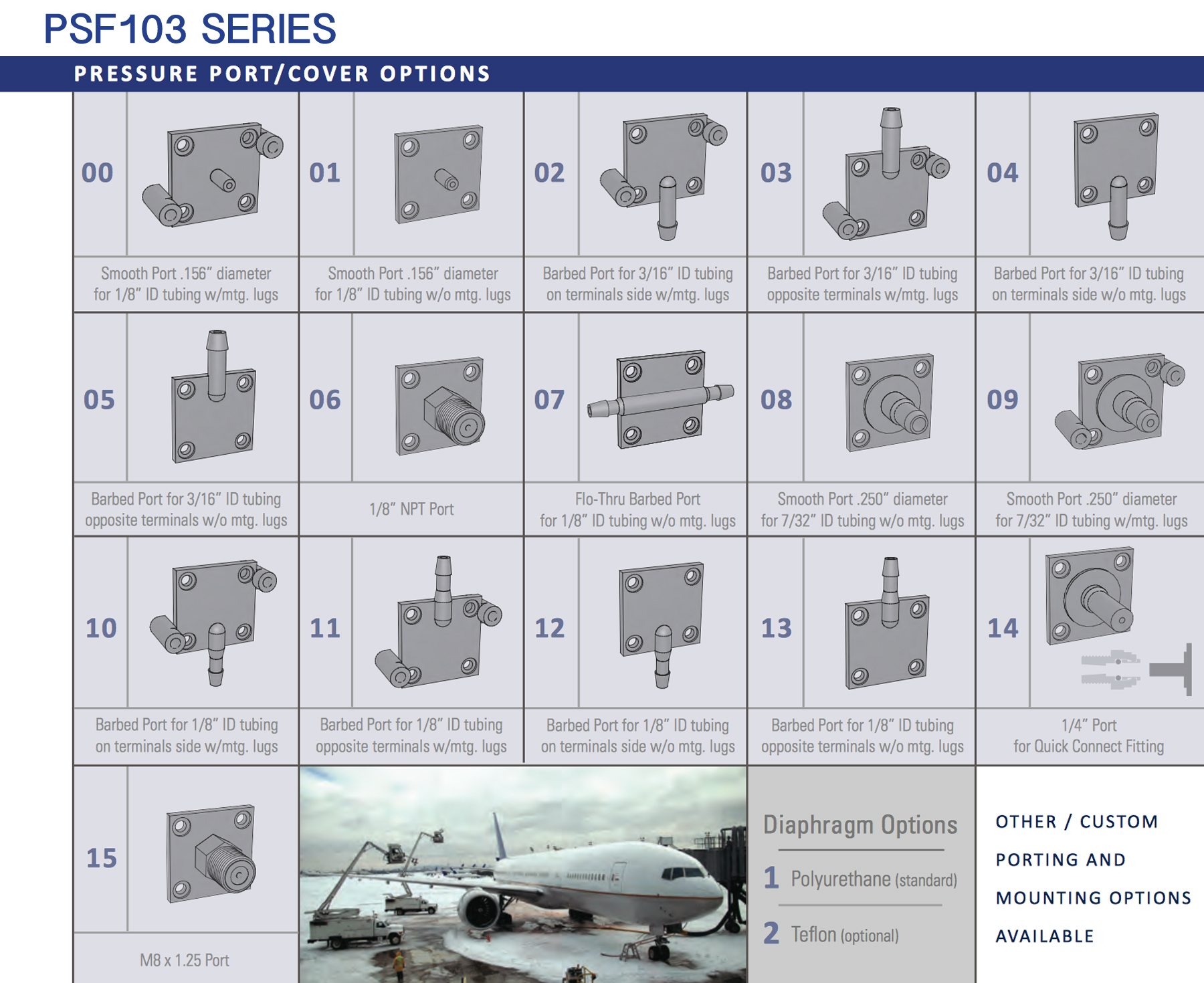

Porting Options
Many standard ports
Diaphragm Material
Polyurethane (Teflon® optional with limited pressure ranges) and other options available
Contact Points
Silver (Gold available on special order)
Electrical Connections
Terminals - .187"x.020" tab-type for use with quick disconnects (ref. AMP #2-520182-2 or equivalent) .250" available (contact us)
Mounting
#4 Screws through mounting lugs; #2 Screws through eyelets
Weight
Less than 20 grams
Current Rating
Varies by option.

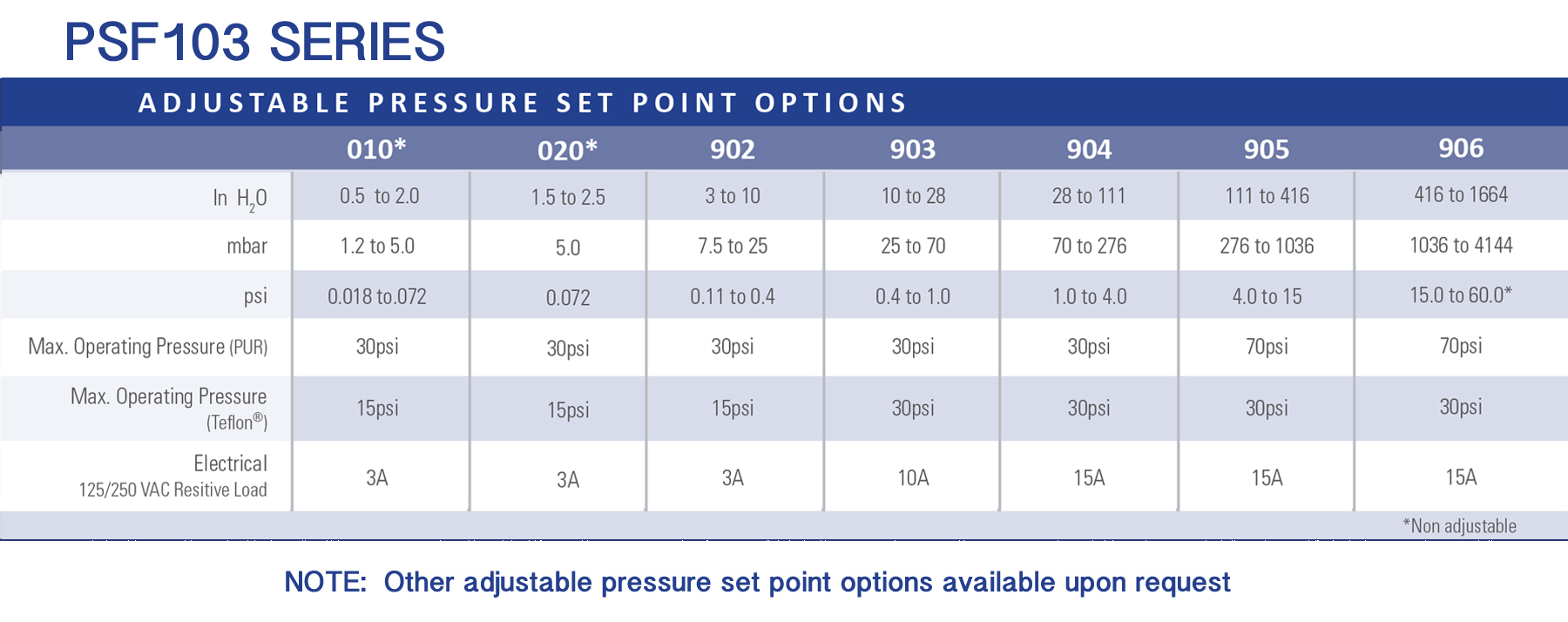

See Configuration Options below
Operating Voltage
See Configuration Options below
