Standard Tolerance
±20% (Tighter tolerances available)
Switch Type
SPDT normally open or normally closed
Switching Medium
Air; compatible fluids
Mechanical Capability
Vacuum switch
Mechanical Life
More than 10 million cycles
Operating Temp.
+40°F to +150°F (standard) | -46°F to +205°F (contact us)
Case Material
Polycarbonate (optional: Lexan 141, Supec®, Ultem®, Noryl®)
Vacuum Port Options
.250" diameter, 1/8" NPT, Quick Connect Fitting Port
Diaphragm Material
Polyurethane (Teflon® optional)
(Note: other material options available)
Contact Points
Silver (Gold available on special order)
Electrical Connections
Terminals - .187"x.020" tab-type for use with quick disconnects (ref. AMP #2-520182-2 or equivalent) .250" available (contact us)
Mounting
#2 Screws through eyelets
Weight
Less than 20 grams
Current Rating
Varies by option.

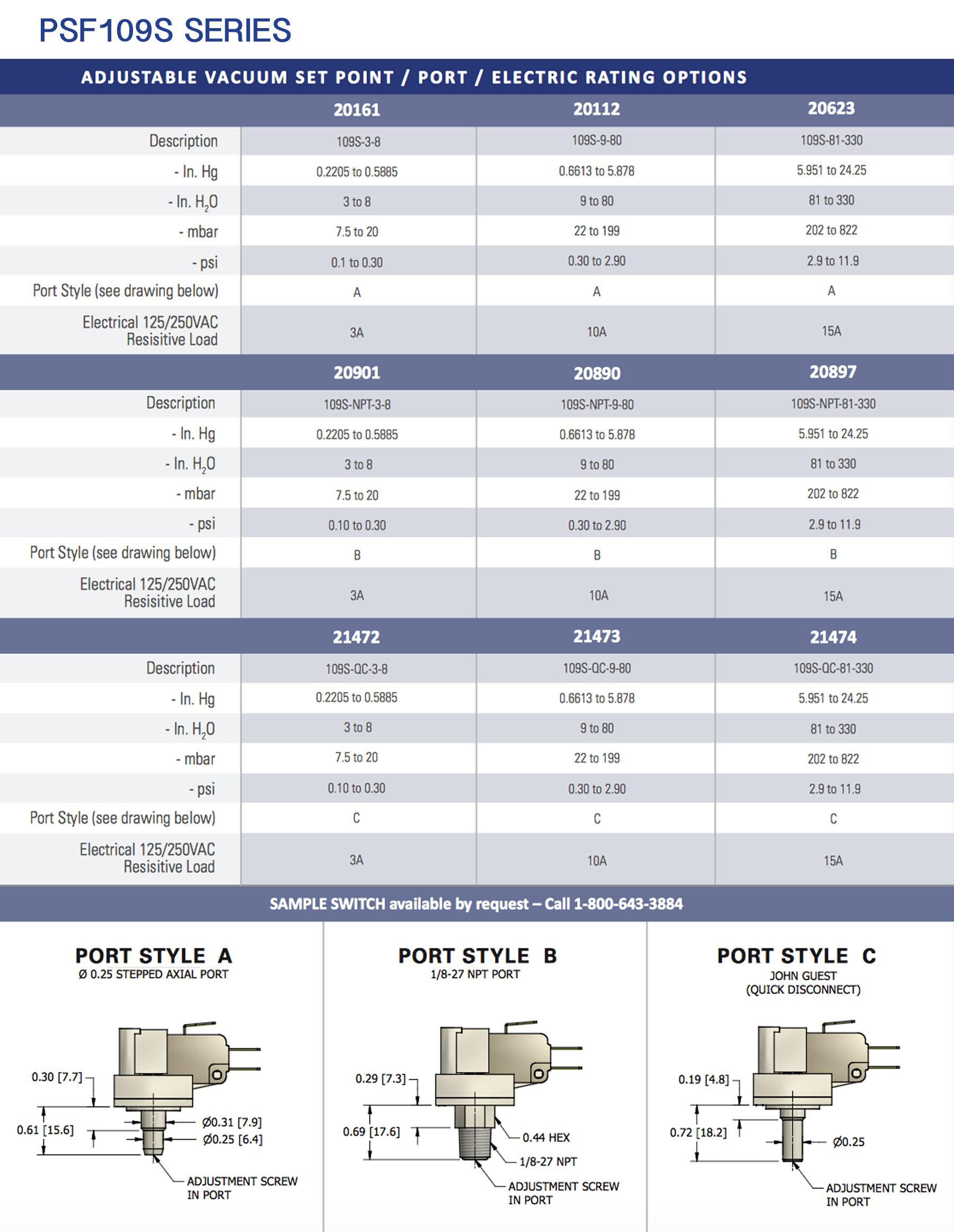

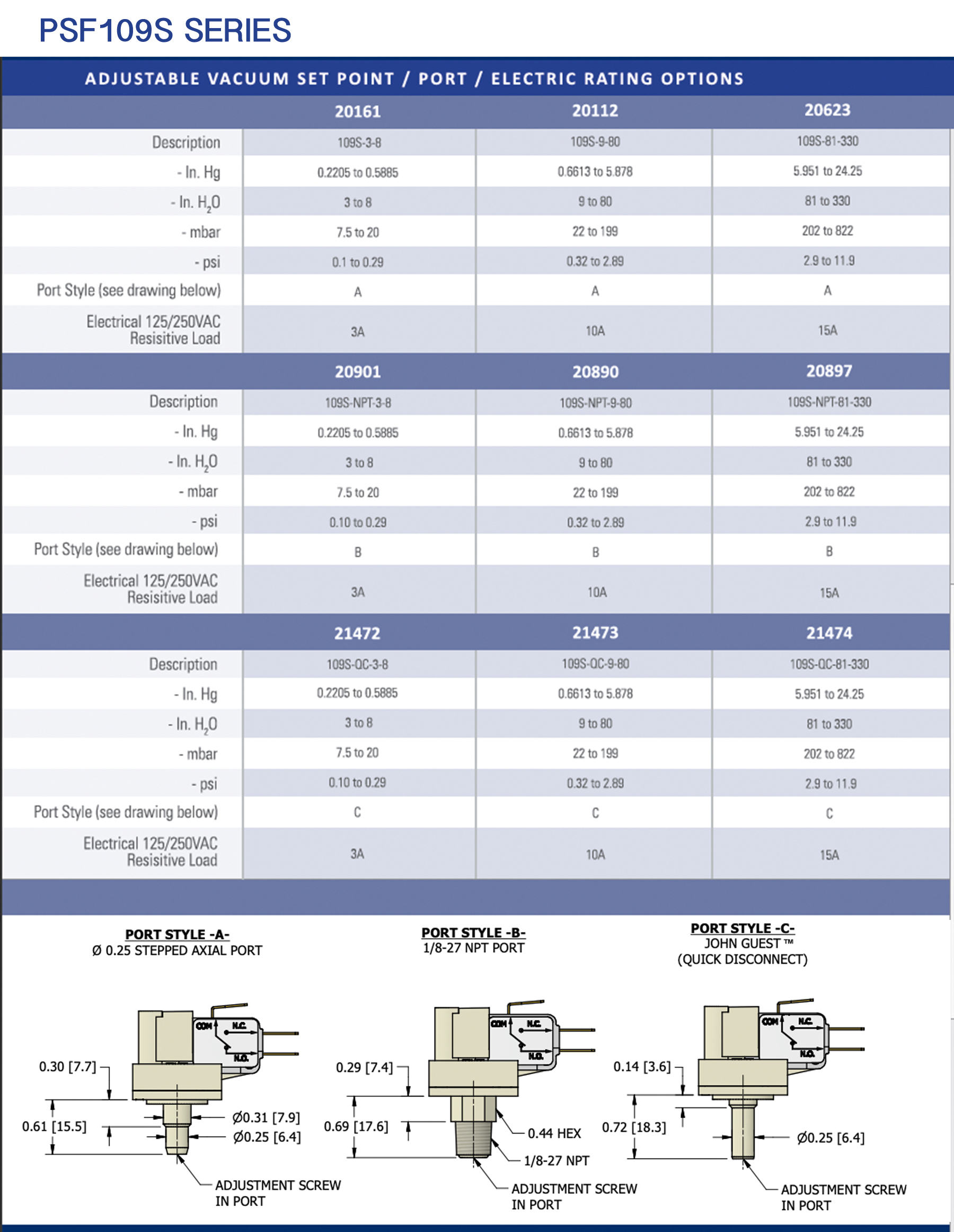

See Configuration Options below
Operating Voltage
125/250 VAC
