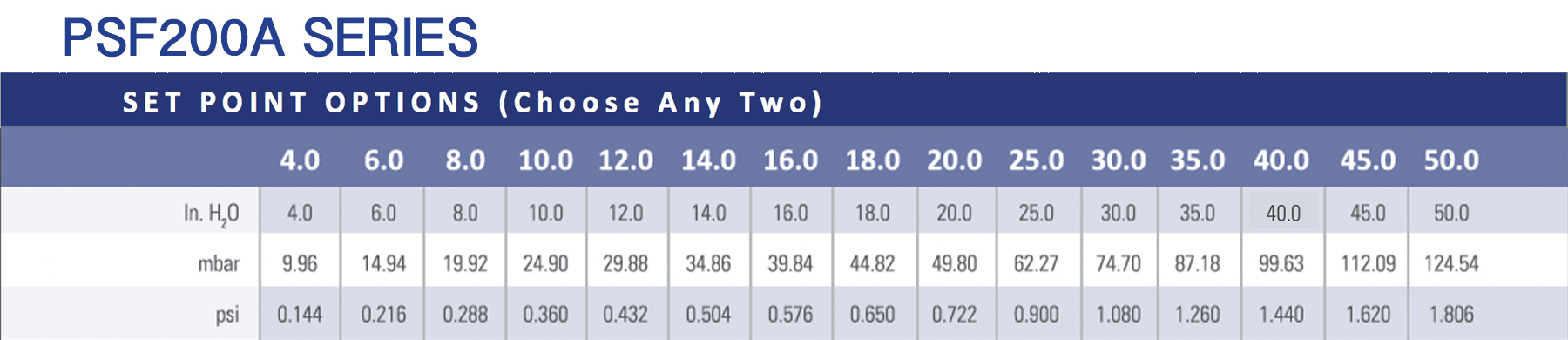

Standard Set Point Tolerance
±20% (Tighter tolerances available)
Switch Type
SPST normally open
Switching Medium
Air; compatible fluids on "High" side
Mechanical Capability
Pressure switch, vacuum switch, differential switch
Mechanical Life
More than 20 million cycles
Proof Pressure
15 psi: for units with polyurethane diaphragm
8 psi: for units with Teflon® diaphragm
Operating Temp.
+40°F to +150°F (standard) | -46°F to +205°F (contact us)
Case Material
Polycarbonate (other materials available)
Porting Options
Two .200" diameter barbed ports (low / high) for use with 1/8" - 3/16" ID tubing
Diaphragm Material
Polyurethane / Teflon® (other material options available)
Contact Points
Gold
Electrical Connections
Terminals - .187"x.020" tab-type, for use with quick disconnects (ref. AMP 2-520182-2 or equivalent)
Mounting
Eyeleted for #2 screws
Weight
Less than 10 grams
Current Rating
Up to 40mA resistive
Operating Voltage
AC/DC - 30V or less with resistive load; 120 VAC neon lamp load
Note: For higher load capabilities contact us for our SRF solid state relay
