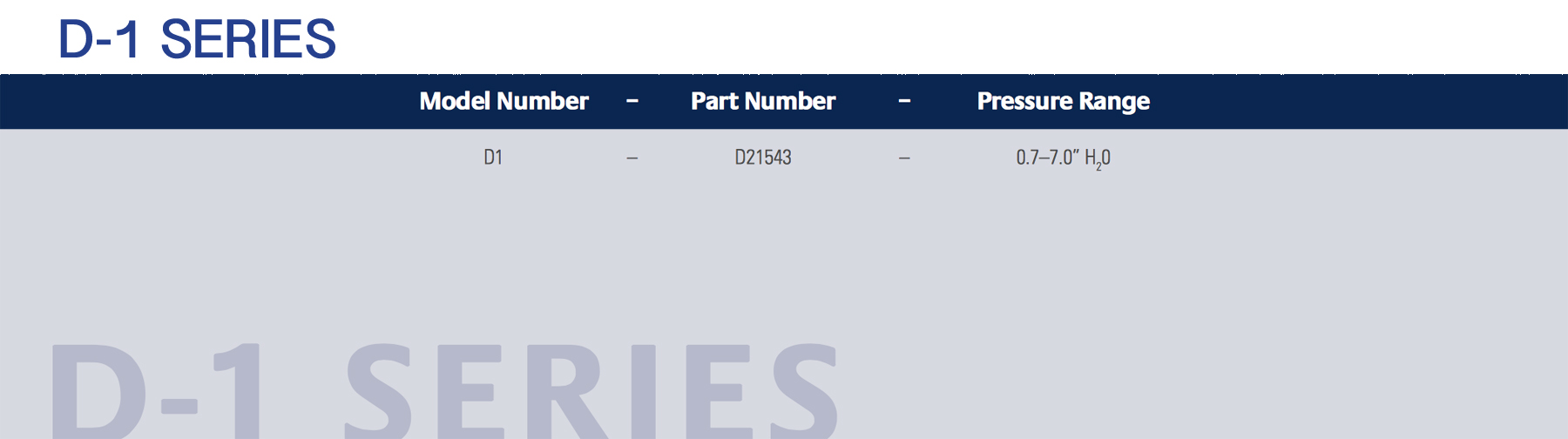

Dietz D-1

Dietz D-1 Specifications

• Mechanical

  Set Point Ranges
  0.7"–7.0" H₂0

  Dead Band
  Approximately 50% of Set Point

  Proof Pressure
  30" H₂0 (75 mbar)

  Mechanical Capability
  Differential pressure switch

  Mechanical Life
  1,000,000 Cycles

  Temperature Range
  +40–150°F (4.4-65.6°C)

• Physical

  Housing Material
  Anodized Aluminum

  • Fabricated or sheet aluminum anodized in accordance with MIL-A-8625, Type 1, Class 2
  • Brass or steel machine parts are cadmium plated in accordance with Federal Specification QQ-P-416, Type II, Class 2

  Diaphragm
  Silicone Coated Fabric

  Pressure Port
  0.312 ± .005 O.D. Tube

  Electrical Connection
  0.058 Push-on Terminals

  Weight
  0.32 lbs (0.14kg)

• Electrical

  Electrical Connection
  SPDT Snap Action

  Current Rating
  4 A 250 VAC / 5 A 28 VDC
